MIL-DTL-18001 Anodes, Sacrificial Zinc AlloyThis specification covers the requirements for zinc anodes \(galvanic protectors\) in the form of plates, slabs, discs and rods for corrosion protection \(cathodic protection\) of metals and alloys. It also includes features of anode design and fabrication such as cast-in cores for mounting purposes. The material described by this specification contains elements for which the Occupational Safety and Health Administration \(OSHA\) has set standards for exposure limits. Handling, storage, and application of this material should be in accordance with the most recent Code of Federal Regulations Title 29, Part 1910 and 1915 and any other safety and health regulations \(local or otherwise\) which may apply.

Pages 1 - - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45|||

CAST ANODE

�.675 ASTM A53

LETTERING ON EXPOSED

�16MM BS-EN-10305-1

FACE, SHOW ACTUAL NOM SIZE.

2X D4

GROOVED, SERRATED,

OR THREADED

R.12�.06"

(R6�3MM)

TYP

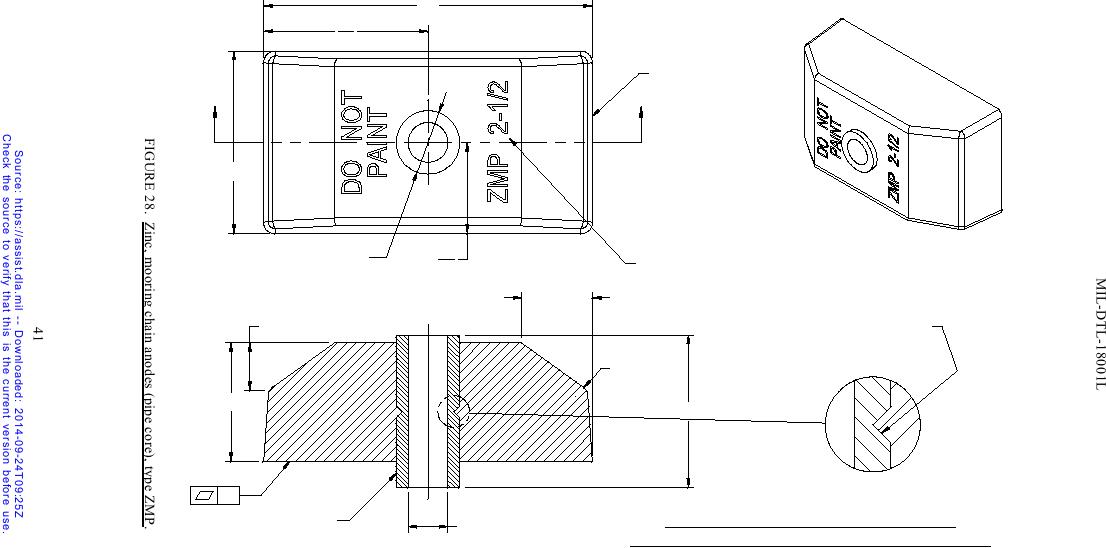

SKETCH K1: MOORING CHAIN ANODES

�.423" ASTM A53

STEEL CORE

�10MM BS-EN-10305-1

(PIPE CORE OR PIPE BUSHING CORE) TYPE ZMP

1. SEE DIMENSIONS ON SKETCH N2.

2. FOR USE ON GRADE FM3 STUD LINK CHAIN.

3. EXTERIOR EDGES AND CORNER RADII OF CAST ANODE

SHALL BE 0.06 TO 0.19.

4. PIPE CORE SHALL BE 9/16 INCH TUBING X 0.083 WALL

CONFORMING TO ASTM A513, TYPE S OR 3/8 STANDARD

SIZE PIPE CONFORMING TO ASTM A53/53M
